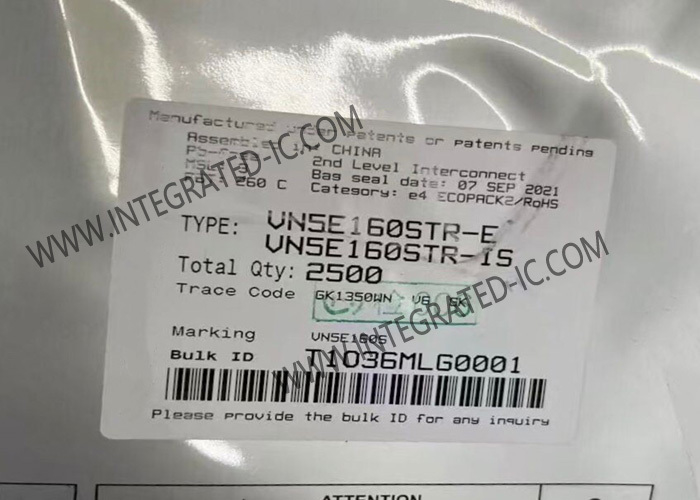

VN5E160STR Integrated Circuit Chip Single Channel High Side Driver For Automotive Applications
VN5E160STR Integrated Circuit Chip Single Channel High Side Driver For Automotive Applications
Descripción
Part Number:
VN5E160STR
Number of Drivers::
1 Driver
Number of Outputs::
1 Output
Output Current::
1 A
Supply Voltage - Min::
4.5 V
Supply Voltage - Max::
28 V
VN5E160STR Integrated Circuit Chip Single Channel High Side Driver For Automotive Applications
Product Description Of VN5E160STR
VN5E160STR is a single channel high-side driver manufactured in the VIPower M0-5 technology and housed in the tiny SO-8 package.
VN5E160STR is designed to drive automotive grounded loads delivering protection, diagnostics and easy 3V and 5V CMOS-compatible interface with any microcontroller.
Specifications Of VN5E160STR
1 Driver
1 Output
1 A
4.5 V
28 V
- 40 C
+ 150 C
Maximum Turn-Off Delay Time:
15 us
Maximum Turn-On Delay Time:
10 us
Moisture Sensitive:
Yes
Operating Supply Current:
3.5 mA
Operating Supply Voltage:
13 V
Unit Weight:
80 mg
Features Of VN5E160STR
General
– Inrush current active management by power limitation
– Very low stand-by current
– 3.0V CMOS compatible inputs
– Optimized electromagnetic emissions
– Very low electromagnetic susceptibility
– In compliance with the 2002/95/EC european directive
Diagnostic functions
– Open Drain status output
– On-state open load detection
– Off-state open load detection
– Output short to VCC detection
– Overload and short to ground (power limitation) indication
– Thermal shut-down indication
Protections
– Undervoltage shut-down
– Overvoltage clamp
– Load current limitation
– Self limiting of fast thermal transients
– Protection against loss of ground and loss of VCC
– Over-temperature shut-down with autorestart (thermal shut-down)
– Reverse battery protected (a)
– Electrostatic discharge protection
Applications Of VN5E160STR
All types of resistive, inductive and capacitive loads
