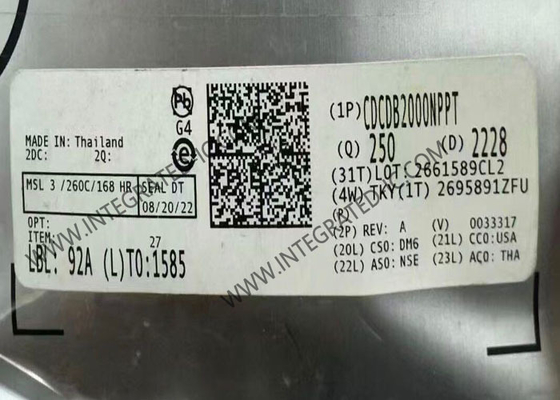

CDCDB2000NPPT Integrated Circuit Chip 20-Output Clock Buffer For PCIe Gen 1 To Gen 7
Product Description
The CDCDB2000NPPT is a 20-output LP-HCSL, DB2000QL compliant clock buffer designed for distributing reference clocks for PCIe Gen 1-7, QuickPath Interconnect (QPI), UPI, SAS, and SATA interfaces. Featuring SMBus, SBI, and 8 output enable pins, it allows individual configuration and control of all 20 outputs. This DB2000QL derivative buffer meets or exceeds system parameters in the DB2000QL specification and comes in a compact 6mm * 6mm TLGA/GQFN package with 80 leads.
Specifications
| Number of Circuits |
1 |
| Ratio - Input:Output |
1:20 |
| Differential - Input:Output |
Yes/Yes |
| Input |
HCSL |
| Output |
HCSL |
| Frequency - Max |
250 MHz |
| Voltage - Supply |
3.135V ~ 3.465V |
| Operating Temperature |
-40°C ~ 85°C (TA) |
Features
- 20 LP-HCSL outputs with integrated 85Ω output terminations
- 8 hardware output enable (OE#) controls
- Additive phase jitter after DB2000QL filter: < 0.08ps rms
- Supports PCIe Gen 6 and Gen 7 Common Clock (CC) and Individual Reference (IR) architectures
- Spread spectrum-compatible
- Cycle-to-cycle jitter: < 50ps
- Output-to-output skew: < 50ps
- Input-to-output delay: < 3ns
- 3.3V core and IO supply voltages
- Hardware-controlled low power mode (PD#)
- Side-Band Interface (SBI) for output control in PD# mode
- 9 selectable SMBus addresses
- Power consumption: < 600mW
- 6mm * 6mm, 80-pin TLGA/GQFN package
Applications
Microserver and tower server, storage area network and host bus adapter card, network attached storage, hardware accelerator.
