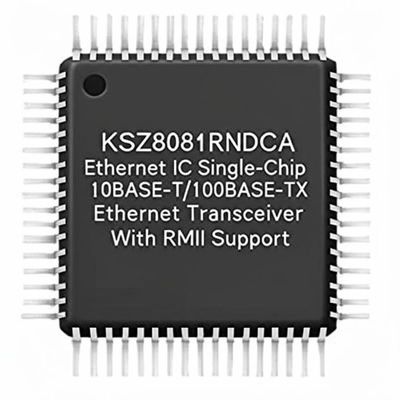

KSZ8081RNDCA Ethernet IC Single-Chip 10BASE-T/100BASE-TX Ethernet Transceiver With RMII Support
Product Description
The KSZ8081RNDCA is a single-supply 10BASE-T/100BASE-TX Ethernet physical-layer transceiver designed for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable. This highly-integrated PHY solution reduces board cost and simplifies layout through on-chip termination resistors for differential pairs, integrated low-noise regulator for 1.2V core supply, and support for 1.8V/2.5V/3.3V digital I/O interfaces.
Specifications
| Type |
Transceiver |
| Protocol |
RMII |
| Number of Drivers/Receivers |
1/1 |
| Duplex |
Full |
| Voltage - Supply |
1.8V, 2.5V, 3.3V |
| Operating Temperature |
0°C ~ 70°C |
Key Features
- Single-Chip 10BASE-T/100BASE-TX IEEE 802.3 Compliant Ethernet Transceiver
- RMII v1.2 Interface Support with 50 MHz Reference Clock Output to MAC
- RMII Back-to-Back Mode Support for 100 Mbps Copper Repeater
- MDC/MDIO Management Interface for PHY Register Configuration
- Programmable Interrupt Output
- LED Outputs for Link and Activity Status Indication
- On-Chip Termination Resistors for Differential Pairs
- Baseline Wander Correction
- HP Auto MDI/MDI-X for Cable Connection Detection
- Auto-Negotiation for Speed (10/100 Mbps) and Duplex (Half/Full) Selection
- Power-Down and Power-Saving Modes
- LinkMD® TDR-Based Cable Diagnostics
- Parametric NAND Tree Support for Fault Detection
- HBM ESD Rating (6 kV)
- Loopback Modes for Diagnostics
- Single 3.3V Power Supply with VDD I/O Options (1.8V, 2.5V, 3.3V)
- Built-In 1.2V Regulator for Core
- 24-pin 4 mm x 4 mm QFN Package
Applications
Game Consoles
IP Phones
IP Set-Top Boxes
IP TVs
LOM
Printers
