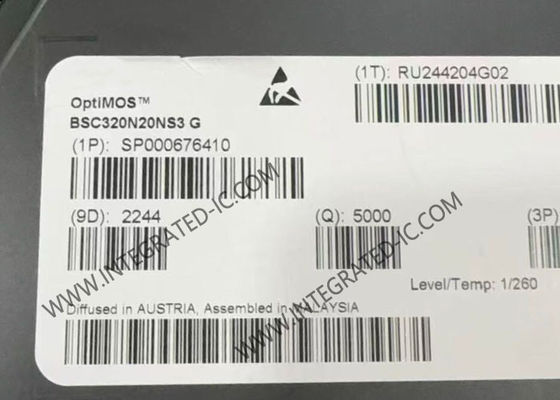

BSC320N20NS3G Integrated Circuit Chip 200V N-Channel OptiMOS™ Power MOSFET Transistor
Product Description
BSC320N20NS3G 200V OptiMOS™ products are performance-leading benchmark technologies, perfectly suited for synchronous rectification in 48V systems, DC-DC converters, uninterruptible power supplies (UPS), and inverters for DC motor drives.
Specifications
| FET Type |
N-Channel |
| Technology |
MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) |
200 V |
| Current - Continuous Drain (Id) @ 25°C |
36A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) |
10V |
| Rds On (Max) @ Id, Vgs |
32mOhm @ 36A, 10V |
| Vgs(th) (Max) @ Id |
4V @ 90µA |
| Gate Charge (Qg) (Max) @ Vgs |
29 nC @ 10 V |
| Vgs (Max) |
±20V |
| Input Capacitance (Ciss) (Max) @ Vds |
2350 pF @ 100 V |
| Power Dissipation (Max) |
125W (Tc) |
| Operating Temperature |
-55°C ~ 150°C (TJ) |
Features
- N-channel, normal level
- Excellent gate charge X RDs(on) product (FOM)
- Very low on-resistance Ros(on)
- Pb-free lead plating; RoHS compliant
- Qualified according to JEDEC1 for target application
- Halogen-free according to IEC61249-2-21
- Ideal for high-frequency switching and synchronous rectification
Benefits
- Highest efficiency
- Highest power density
- Lowest board space consumption
- Minimal device paralleling required
Applications
- EV charging
- DIN rail power supply solutions
- 48 V intermediate bus converter (IBC)
- Telecommunications infrastructure
- Uninterruptible power supplies (UPS)
