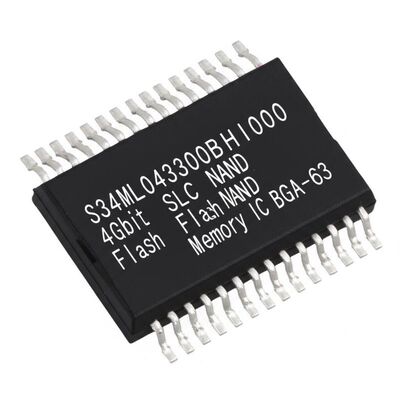

S34ML04G300BHI000 Memory IC Chip
4Gbit SLC NAND Flash Memory IC in BGA-63 Package
Product Overview
The S34ML04G300BHI000 is a high-performance SLC NAND Flash Memory IC featuring a 3.3-V VCC power supply and x8 I/O interface. This NAND cell solution provides optimal cost-effectiveness for solid state mass storage applications. The memory is organized into independently erasable blocks, enabling valid data preservation during erase operations. Page size for x8 configuration is (4096 + 256 spare) bytes.
Technical Specifications
| Parameter |
Specification |
| Product Category |
NAND Flash |
| Mounting Style |
SMD/SMT |
| Package / Case |
BGA-63 |
| Series |
S34ML04G3 |
| Memory Size |
4 Gbit |
| Interface Type |
Parallel |
| Organization |
512 M x 8 |
| Timing Type |
Asynchronous |
| Data Bus Width |
8 bit |
| Supply Voltage Range |
2.7 V to 3.6 V |
| Maximum Supply Current |
35 mA |
| Operating Temperature Range |
-40℃ to +85℃ |
| Active Read Current (Max) |
35 mA |
Key Features
Architecture
- Density: 4 Gb
- Input / Output Bus Width: 8 bits
- Page Size: (4096 + 256) bytes with 256-byte spare area
- Block Size: 64 Pages (256 KB + 16 KB)
- Plane Size: 2048 blocks (512 MB + 32 MB)
- Device Size: 1 plane per device or 512 Mbyte
NAND Flash Interface
- Open NAND Flash Interface (ONFI) 1.0 compliant
- Address, Data, and Commands multiplexed
Operating Conditions
- Supply Voltage: 3.3-V Device (VCC = 2.7 V ~ 3.6 V)
- Industrial Temperature: -40°C to 85°C
- Industrial Plus Temperature: -40°C to 105°C
Additional Features
- Copy Back Program
- Reset (FFh) command required after power-on as first command
Performance Characteristics
Page Operations
- Read Page Time (tR): 55 µs (Typical) / Single Plane
- Program Time: 350 µs (Typical)
Block Operations
- Block Erase Time: 4 ms (Typical)
Reliability
- 80,000 Program / Erase cycles (Typical)
- 10 Year Data retention (Typical)
- Blocks 0-7 are verified good at time of shipment
Note: Reset (FFh) command is required after power-on as the first command for proper device initialization.
