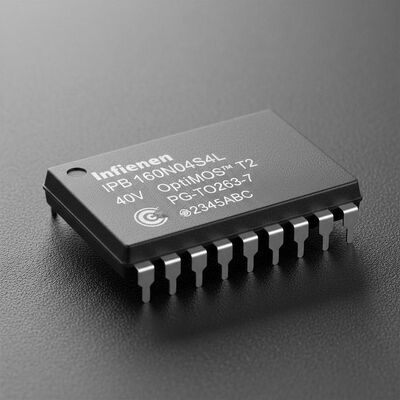

IPB160N04S4L Integrated Circuit Chip 40V OptiMOS™-T2 Series N-Channel Automotive MOSFET PG-TO263-7
IPB160N04S4L is a 40V, 160A, OptiMOS™-T2 Series N-Channel Automotive MOSFET designed for high-performance automotive applications.
Product Specifications
| Parameter |
Value |
| Series |
OptiMOS™ |
| FET Type |
N-Channel |
| Technology |
MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) |
40 V |
| Current - Continuous Drain (Id) @ 25°C |
160A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V |
| Rds On (Max) @ Id, Vgs |
1.5mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id |
2.2V @ 110µA |
| Gate Charge (Qg) (Max) @ Vgs |
190 nC @ 10 V |
| Vgs (Max) |
+20V, -16V |
| Input Capacitance (Ciss) (Max) @ Vds |
14950 pF @ 25 V |
| Power Dissipation (Max) |
167W (Tc) |
| Operating Temperature |
-55°C ~ 175°C (TJ) |
| Mounting Type |
Surface Mount |
| Supplier Device Package |
PG-TO263-7-3 |
| Package / Case |
TO-263-7, D2PAK (6 Leads + Tab) |
Key Features
- N-channel Logic Level Enhancement mode
- AEC qualified for automotive applications
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Green product (RoHS compliant)
- 100% Avalanche tested
- PPAP Capable Device
Applications
Automotive body electronics and power distribution
Automotive secondary power distribution unit
