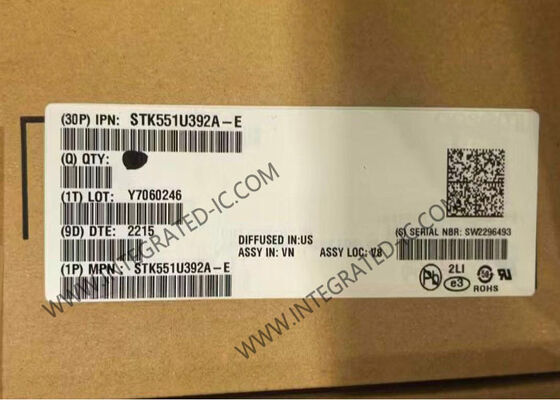

STK551U392A-E Automotive IGBT Modules
High Integrated 600V 15A Half Bridge Intelligent Power Module
Product Overview
The STK551U392A-E Intelligent Power Module (IPM) is a highly integrated device containing all High Voltage (HV) control from HV-DC to 3-phase outputs in a single small SIP module. The output stage utilizes IGBT/FRD technology and implements Under Voltage Protection (UVP) and Over Current Protection (OCP). Internal Boost diodes are provided for high side gate boost drive.
Technical Specifications
| Output Configuration |
Half Bridge (3) |
| Applications |
AC Motors |
| Interface |
Logic |
| Load Type |
Inductive |
| Technology |
IGBT |
| Current - Output / Channel |
15A |
| Current - Peak Output |
30A |
| Voltage - Supply |
12.5V ~ 17.5V |
| Voltage - Load |
450V (Max) |
| Operating Temperature |
-40°C ~ 150°C (TJ) |
| Features |
Bootstrap Circuit, Latch Function, Status Flag |
| Fault Protection |
Current Limiting, Shoot-Through, UVLO |
Key Features
- Over-current Protection Circuit
- Under-voltage lockout for all channels
- Upper / lower ON prevention circuit
- Thermistor for case temperature monitor
Applications
3-phase Motor Control Systems
